2D lasers
Cutting parts from sheet: contours, holes and blanks ready for bending and welding. 2D laser for flat sheet.
- Work bed
- 3000 × 1500 mm
- Sheet thickness
- up to 30 mm
Laser cutting
Sheet up to 30 mm on a 3000 × 1500 mm bed, and tubes and profiles up to 225 mm and 12 m long.

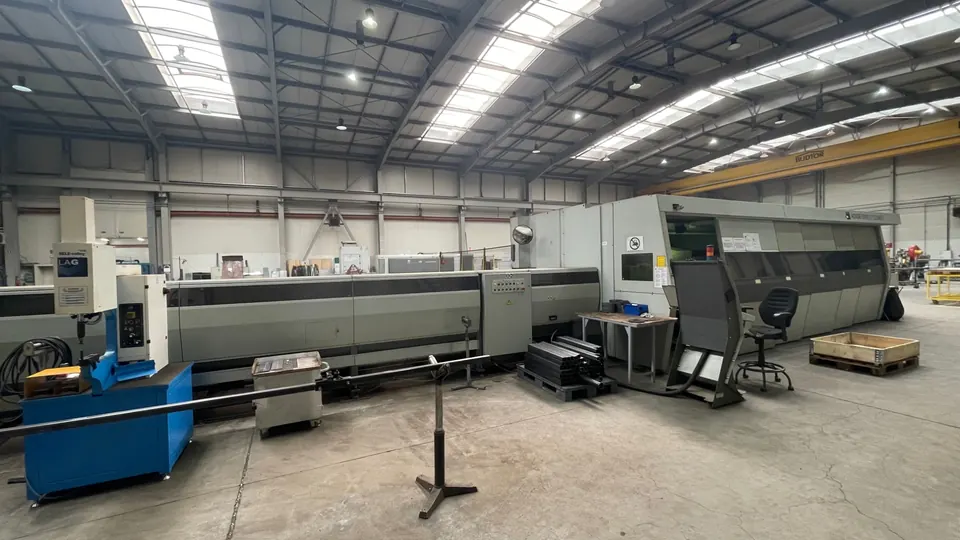

3D tube and profile laser
3D cutting of tubes and closed profiles to length, including holes and joint cut-outs.
- Diameter / profile
- up to 225 mm
- Length
- up to 12,000 mm
Sawing
Cutting bars, tubes and profiles to length before further processing.

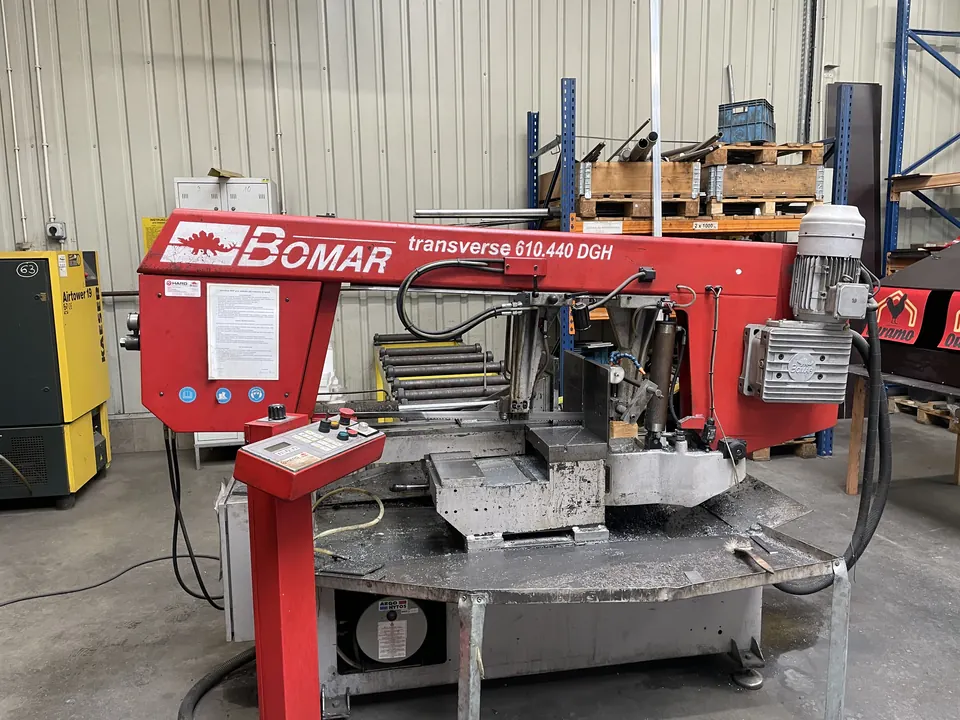

Automatic horizontal band saws
Automatic cutting of bars, tubes and profiles to length, including batches.
- Type
- horizontal, automatic
- Cutting range
- up to 600 mm
BEWO automatic tube cutter
Fast cutting of smaller-diameter tubes into sections.
- Tube diameter
- up to 80 mm
Bending
Bending of sheet, tube, profiles and wire, and pressing on presses up to 500 t.

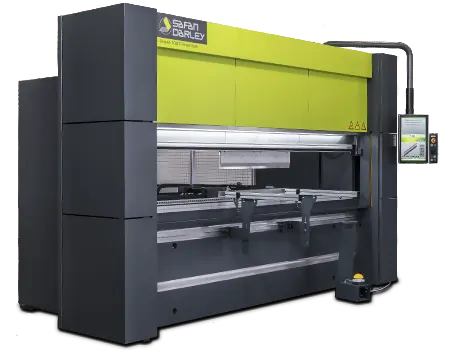

CNC press brakes 320 t, 120 t, 40 t
Sheet bending on CNC press brakes: housings, brackets, bent profiles.
- Press force
- 320 t, 120 t, 40 t
- Sheet thickness
- up to 20 mm
- Bending length
- 3000 mm

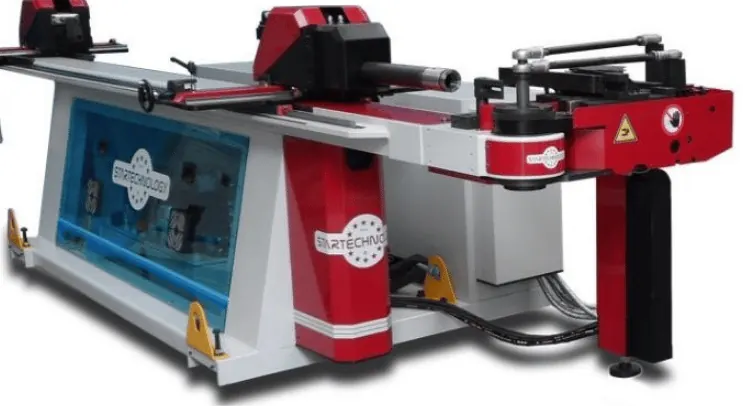

CNC mandrel tube benders
Mandrel tube bending, which keeps the tube section round in the bend.
- Tube diameter
- up to Ø76 mm
- Method
- CNC, mandrel

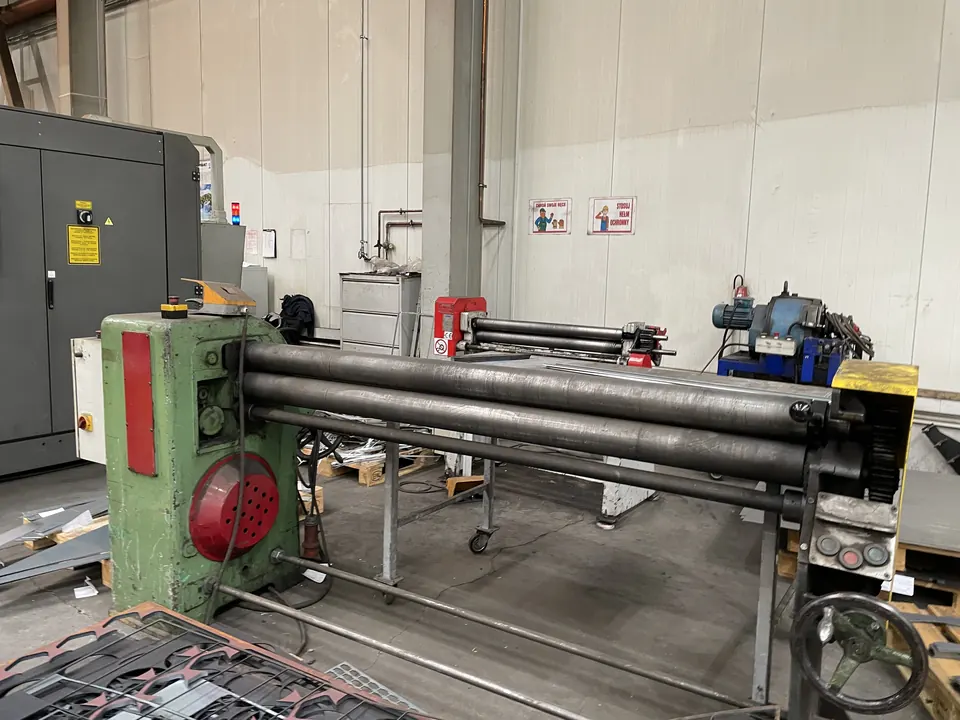

CNC profile bending roll
Rolling profiles into arcs and radii.
- Profile section
- up to 90 × 90 mm

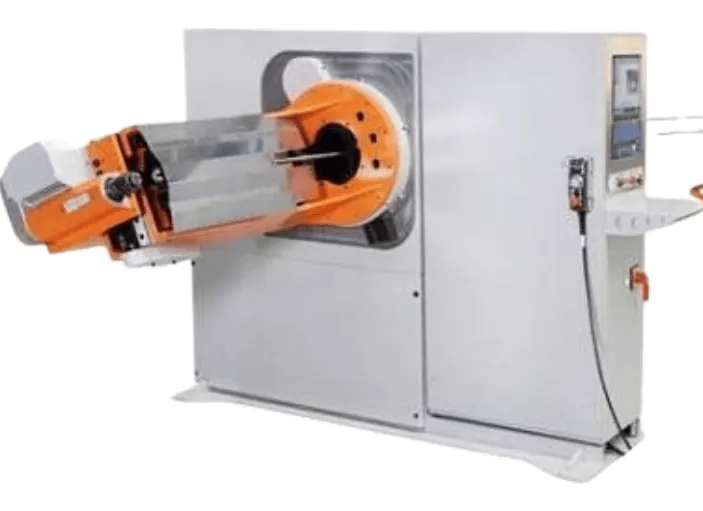

CNC wire bender
Bending wire into formed parts.
- Wire diameter
- Ø3–10 mm

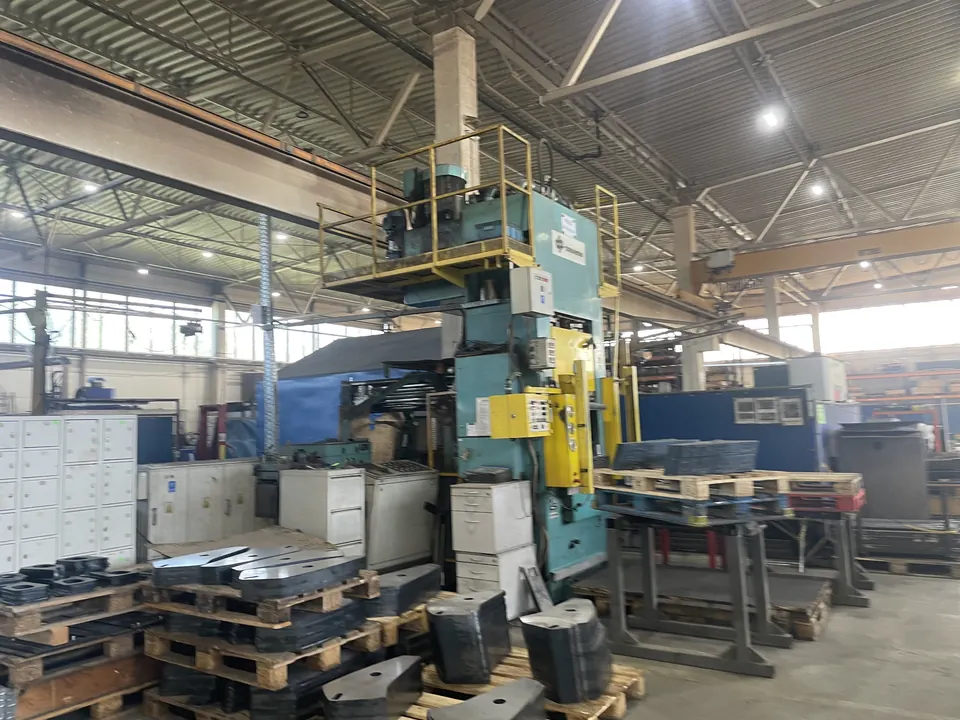

Hydraulic presses
Pressing and forming on hydraulic presses.
- Press force
- up to 500 t

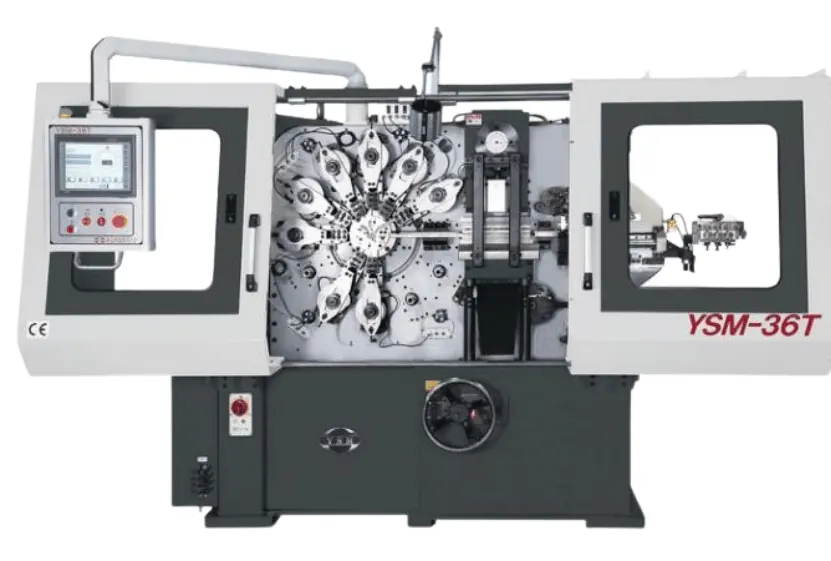

Forming machines
Series forming of parts from strip.
- Strip
- up to 50 × 3 mm

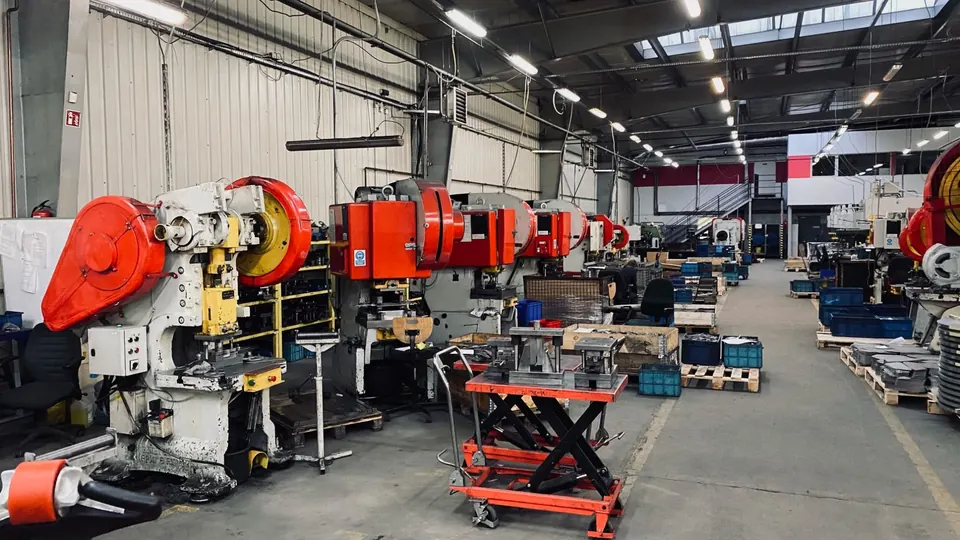

Multi-slide press, eccentric presses
Series pressing of small parts.
- Type
- multi-slide press, eccentric presses
Welding
Robotic and manual welding. Structures up to EXC3 to EN 1090, welding to EN ISO 3834-2.
6 Panasonic robotic welding cells
Repeatable series welding on Panasonic robotic cells.
- Number of stations
- 7
- Working range
- 2800 mm, r = 1800 mm
23 manual MIG/MAG and TIG stations
Manual welding of large structures, frames and prototypes.
- Number of stations
- 23
- Processes
- MIG/MAG, TIG
Overhead cranes
Handling heavy frames and beams at the welding stations.
- Lifting capacity
- 6,8 t i 10 t
Milling
Horizontal and vertical machining centres. A 5 × 3 m gantry mill is being installed.
SAJO 8000, horizontal centre
Horizontal machining centre for housings and large parts.
- Type
- horizontal centre
- Size
- 800 × 800 mm

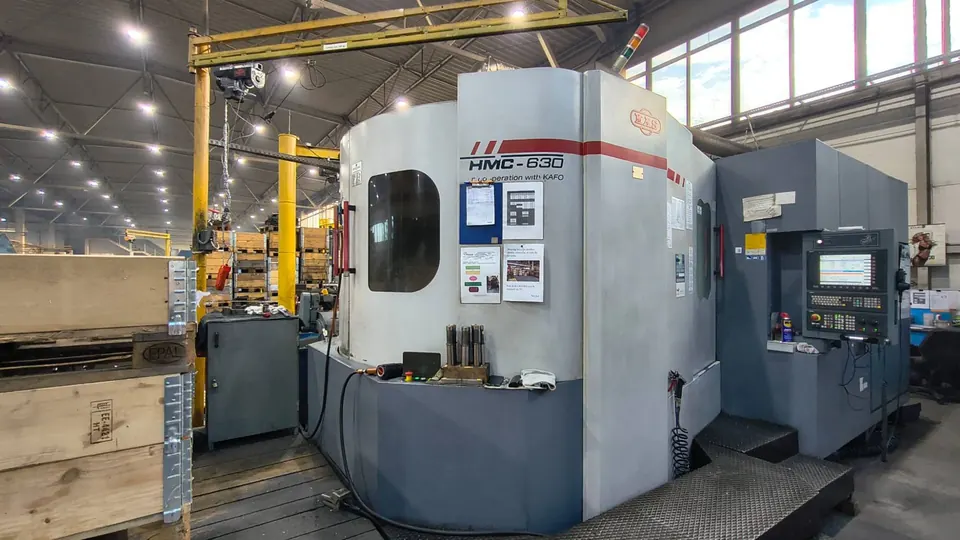

MAS 630, horizontal centre
Horizontal machining centre for multi-side machining.
- Type
- horizontal centre
- Size
- 630 × 630 mm

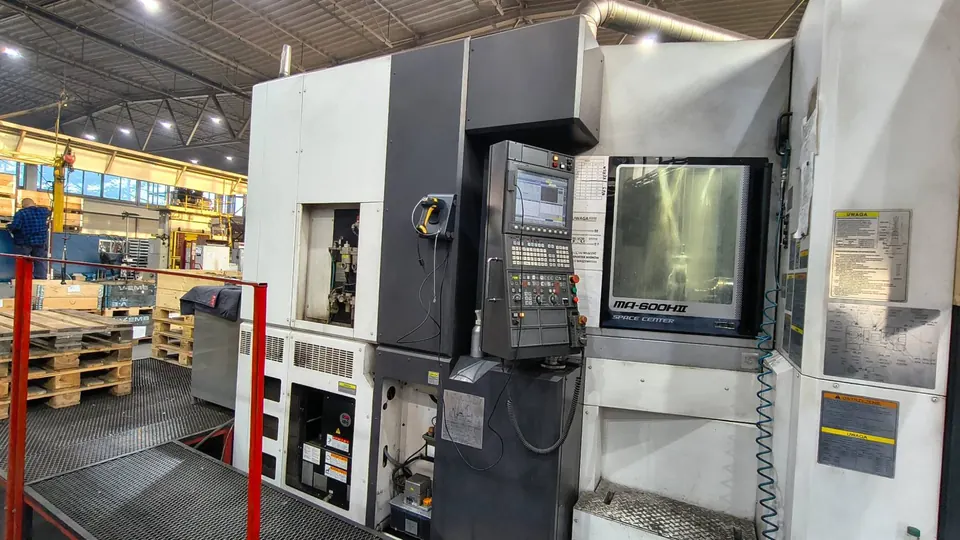

OKUMA MA-600HII, horizontal centre
OKUMA MA-600HII Space Center horizontal machining centre for housings and multi-side machining.
- Type
- horizontal centre
- Size
- 630 × 630 mm

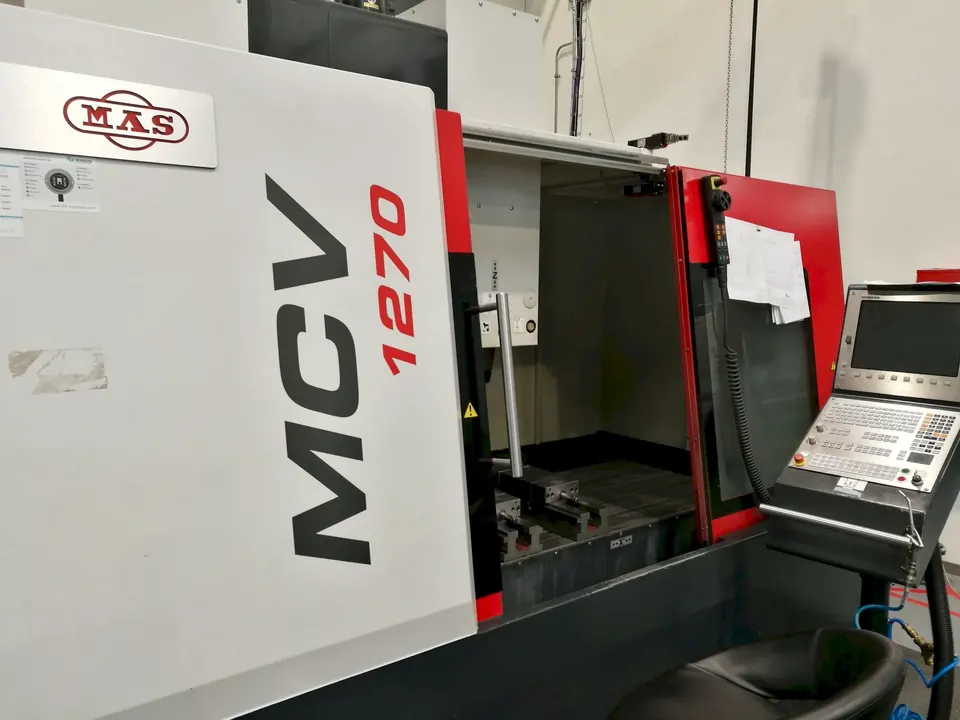

MAS 1270, vertical centre
Vertical machining centre for plates and flat parts.
- Type
- vertical centre
- Size
- 670 × 1500 mm

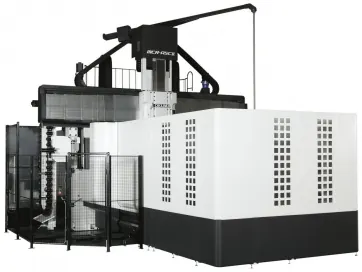

OKUMA gantry milling machine being installed
OKUMA gantry milling machine for large welded structures.
- Size
- 5 × 3 m
Turning
CNC turning of rotational parts.

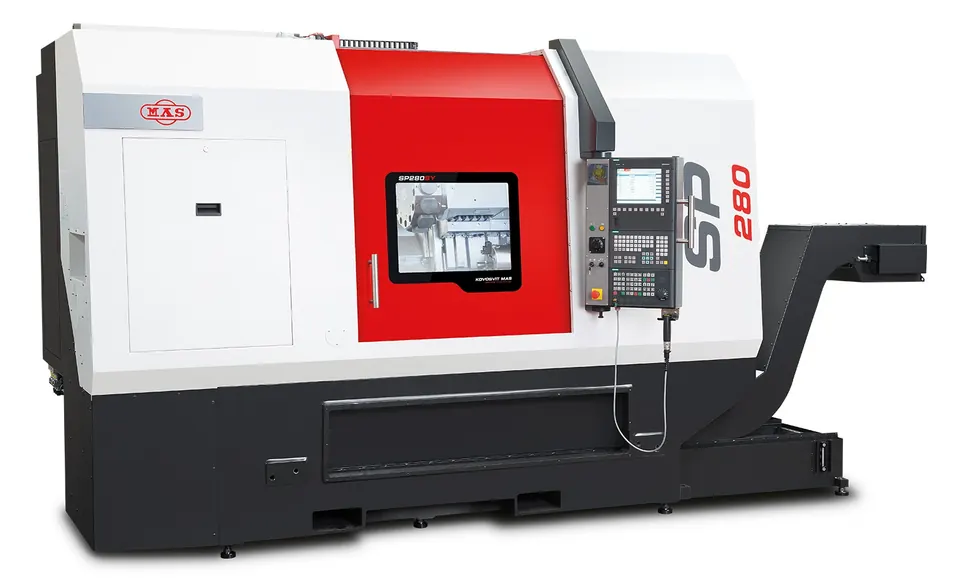

MAS SP280, turning
CNC turning of shafts, bushings and flanges.
- Turning diameter
- Ø280 mm
- Length
- 500 mm

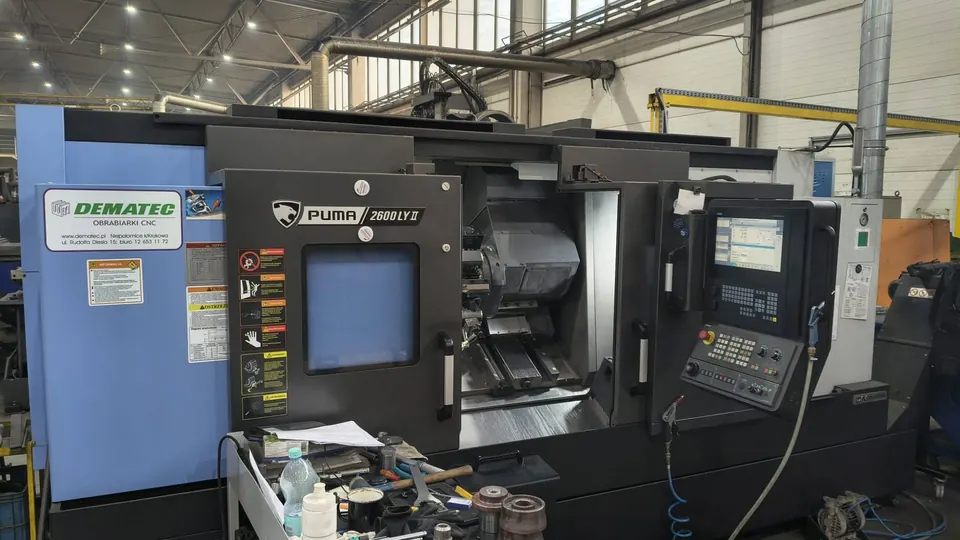

PUMA 2600 CNC lathe
New CNC lathe for rotational parts: shafts, bushings and flanges.
- Type
- CNC lathe
- Turning diameter
- Ø376 mm
- Length
- 760 mm

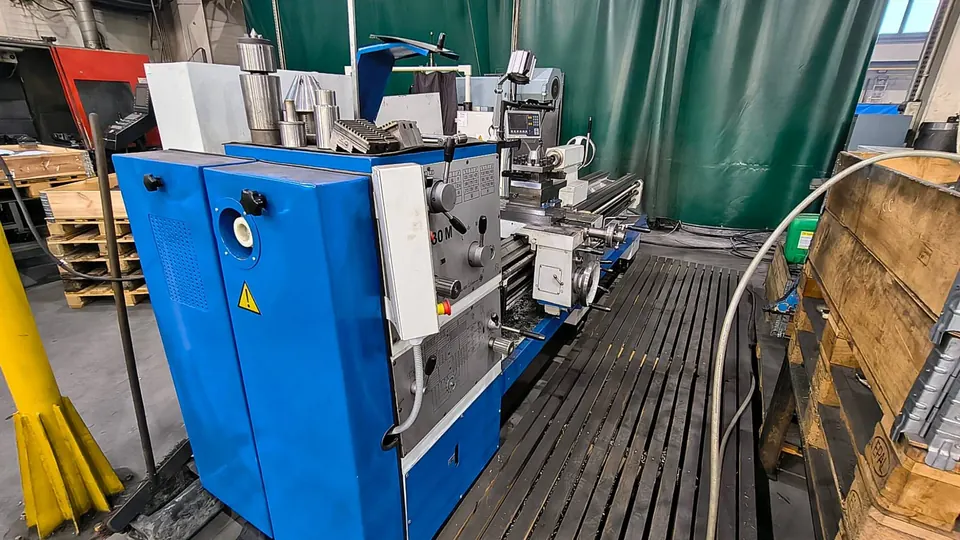

Conventional lathe
Conventional turning of shafts and rotational parts, including longer ones.
- Type
- conventional lathe
Powder coating
Chemical cleaning and phosphating, then two powder-coating shops (6.2 m and 4 m), including a new fully automatic line with a 6200 × 1500 × 2000 mm oven. Any RAL colour.

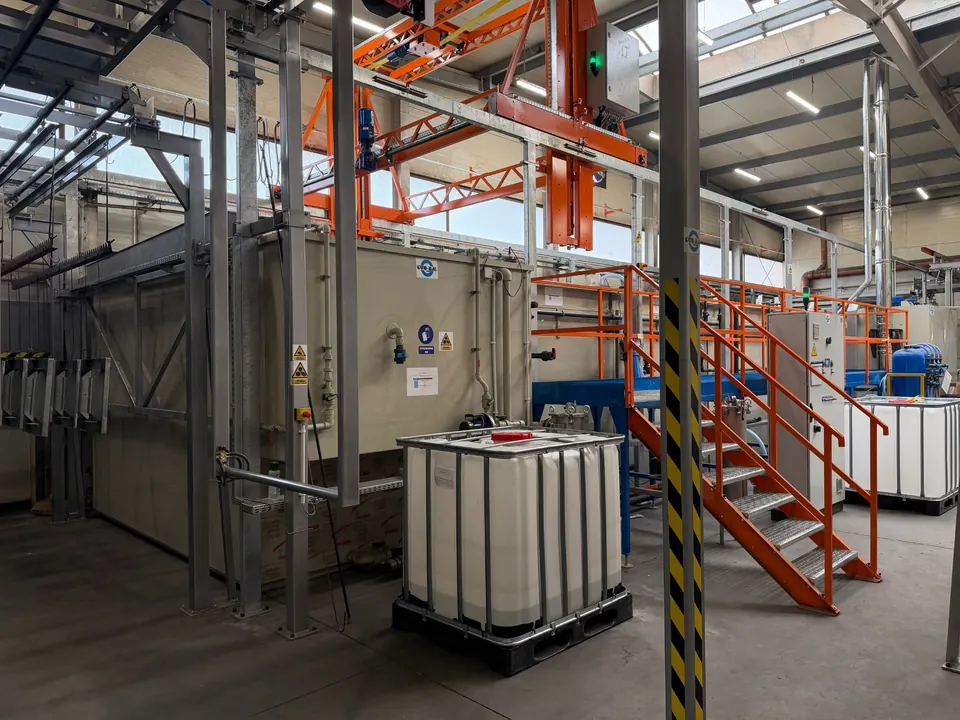

Phosphating, chemical cleaning before painting
Chemical cleaning and phosphating of parts before powder coating. Better coating adhesion and durability.
- Scope
- chemical cleaning, phosphating

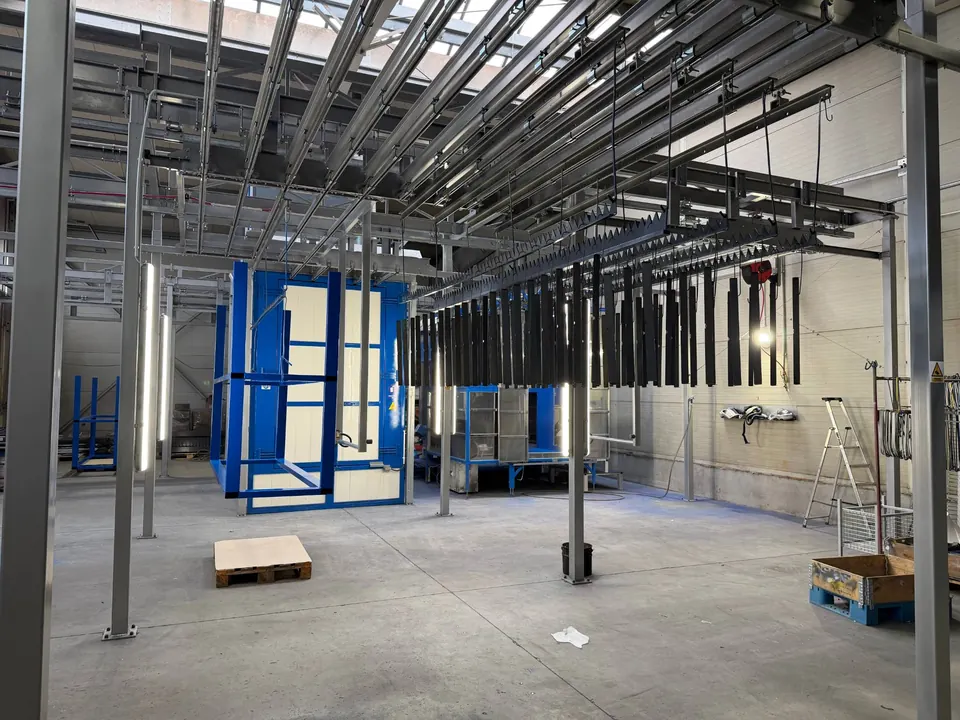

Two powder-coating shops: 6.2 m and 4 m
Powder coating of structures and parts in two shops (6.2 m and 4 m), including a new, fully automatic line, with oven curing.
- Oven size
- 6200 × 1500 × 2000 mm
- Colours
- any RAL colour
Galvanizing
Thermal diffusion galvanizing on site, without sending parts to an outside galvanizer.
Thermal diffusion galvanizing line
Corrosion protection of steel parts by thermal diffusion.
- Method
- thermal diffusion
- Part size
- up to 300 mm
- Length
- up to 2000 mm
Other equipment
Guillotine shear, CNC router for HPL boards, shot blasting, quality control, tool shop, PVC welding and assembly.

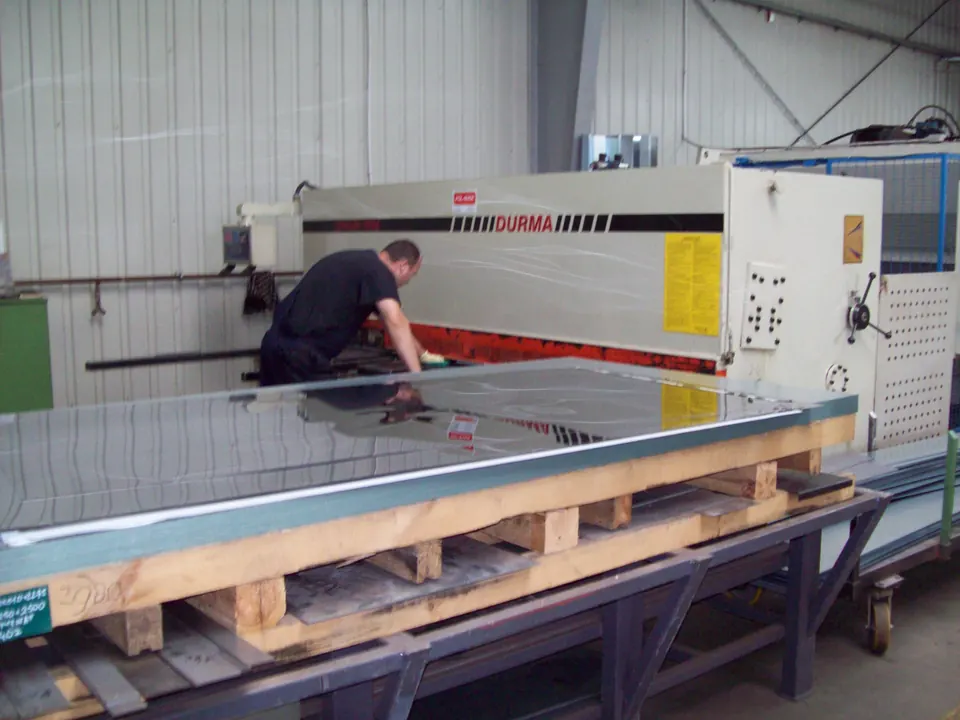

Guillotine shear
Straight cutting of metal sheets.
- Length × thickness
- 3000 × 13 mm

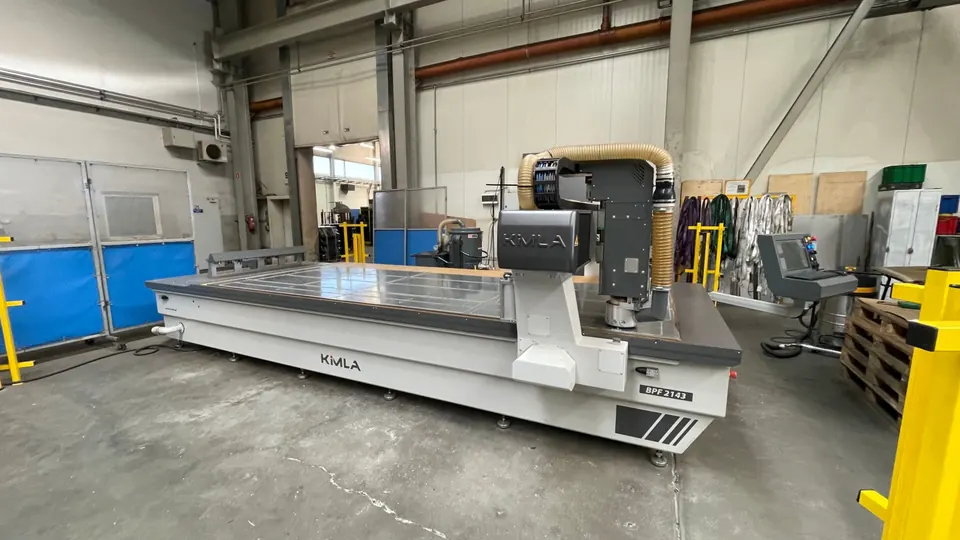

Kimla BPF 2143 CNC router for HPL boards
Cutting and routing of HPL boards on a CNC router.
- Scope
- HPL boards

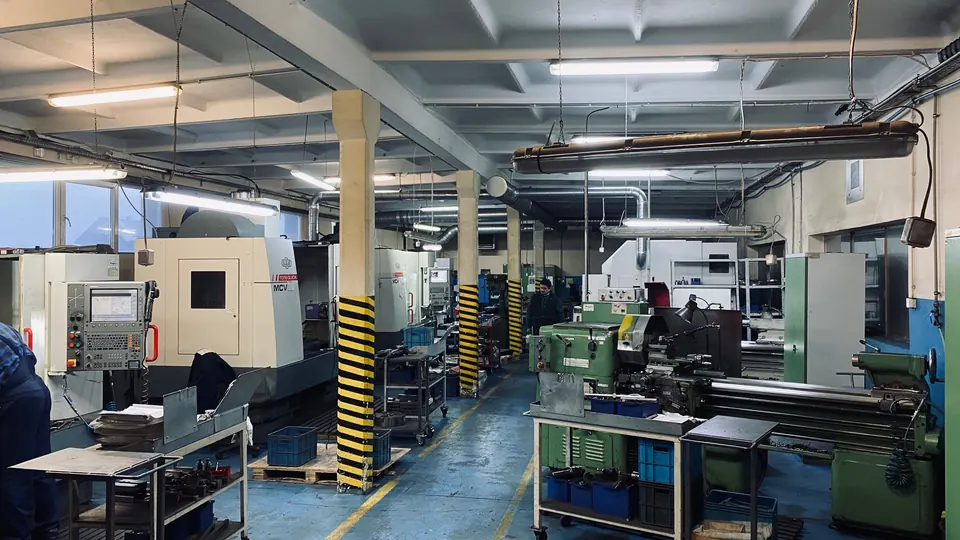

Grinders, EDM machines, tool shop
Our own tool shop: making and repairing fixtures and tools.
- Scope
- grinders, EDM machines
Shot-blasting chamber
Shot blasting of large structures before painting.
- Chamber size
- 9000 × 3000 × 1500 mm
Zeiss coordinate measuring machine
Dimensional inspection of parts and assemblies in the measuring room.
- Measuring range
- 1000 × 1000 × 800 mm

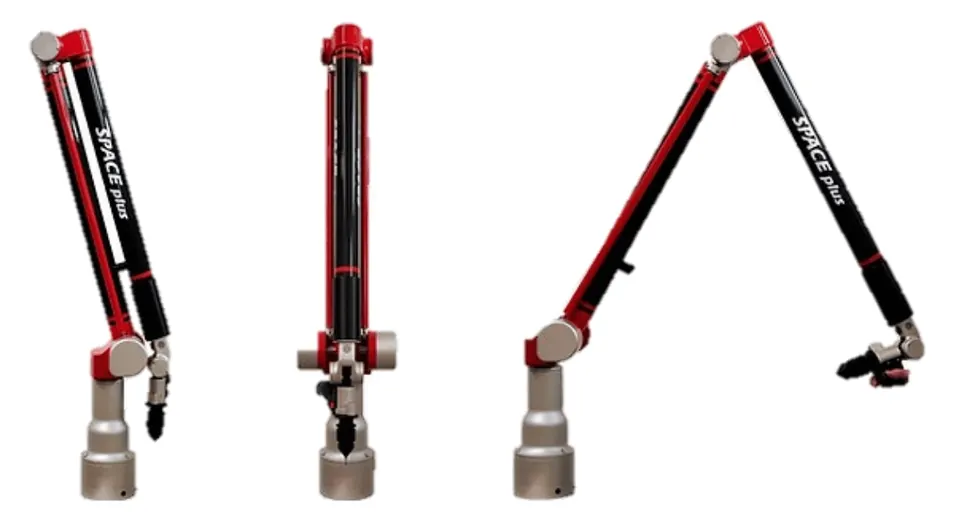

Measuring arm
Portable measurement of larger parts.
- Measuring range
- 800 × 800 × 1000 mm
PVC tarpaulin welding
Welding of PVC tarpaulins and covers with printing.
- Tarpaulin size
- up to 20 × 50 m
- Printing
- vulcanising ink
Mechanical assembly and electrical installation
Assembly of finished units: mechanics, electrics, control cabinets.
- Scope
- mechanical assembly, electrical installation, control cabinets
Salt spray chamber, coating and weld testing
Corrosion resistance tests of coatings and weld testing.
- Scope
- coatings, welds
Software
Engineering office: design, machine programming and production planning.
- Software
- SolidWorks, AutoCAD, SolidCAM, Lantek, MES, flow analysis
